Artec SE-2 2 Band EQ On Board Circuit for Electric Guitar & Bass 4 Pots Model
Artec SE-2 2 Band EQ On Board Circuit for Electric Guitar & Bass 4 Pots Model
Artec Sound is based in South Korea and a very large producer of pickups. They produce many OEM pick-ups for other brands in Europe, the US and Asia. Although their OEM pickups are quite famous under their OEM brand names, the Artecs are still a bit of an underdog (good for us). The years of experience that Artec has can clearly be heard in their pick-ups. All Artec pickups are double-waxed to prevent outside interference. With high quality, excellent sound and versatile options, they offer much for an affordable price.

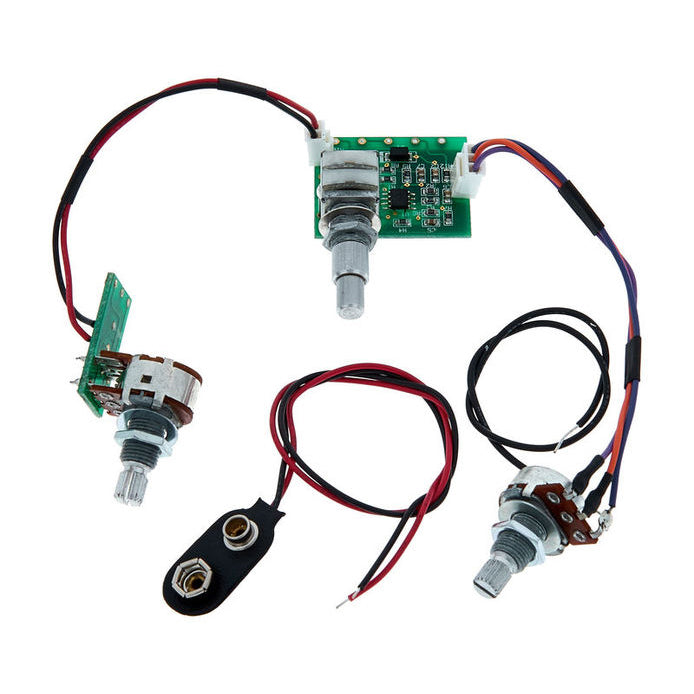

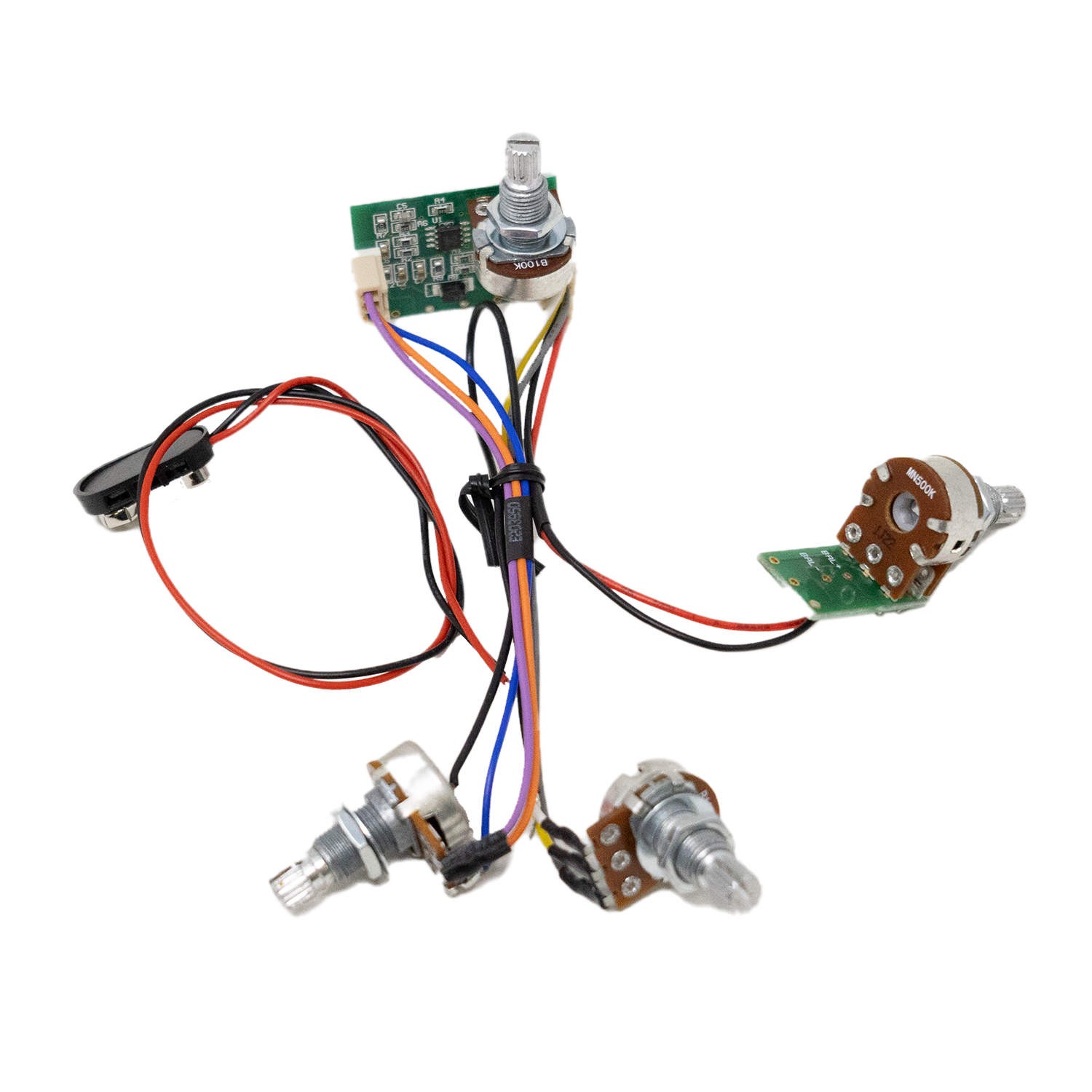

- SE2 features a pre-wired balance control and master volume and treble on separate potentiometers with the bass on SMT PCB.
- Each control pots are designed to connect to PCB by a connector, which make SE2 installation easier and versatile.
- Additional wiring you may need for SE2 installation is just Pickup, Output Jack, Ground and Battery cable.
- High Impedance Input design can match with any Active or Passive Pickup and also Low Impedance Output will keep the same tone from your guitar to any PA system without losing high frequency response.
- Using advanced Surface Mounted Techniques could reduce unwanted sound (Noise) while increasing sound quality
and it's reliability.
- ARTEC guarantees a virtually noiseless sound with long 9V battery life.
-SE2-A features SE2 with Concentric Potentiometer, which is Bass and Treble eq's on one pot and mounted on SMT PCB.
(more than 4000 hours in continuous use. - workable voltage : drop down to 6 V).
- Application : Electric Basses, Electric guitars & Piezo pickup equipped instruments.
Technical Specifications :
- 4 individual pots
Balance, Treble, Volume, Bass
- Battery clip
- Output Jack (1/4")
Bass : +/-12 dB at 100 Hz
Treble : +/-12 dB at 4 kHz
Balance : MN500K Potentiometer
Current : 0.16 mA
Voltage range : 6 V ~ 22 V
Power: 9 V Battery (Battery not included)
